Power your vessel with the Yamaha XTO Offshore XF450 450HP Outboard Motor, engineered for demanding offshore applications where power, precision, durability, and dependable operation are essential. Designed for compatible large center consoles, offshore fishing boats, dual consoles, and other high-performance vessels, the Yamaha XTO Offshore 450 delivers an impressive combination of horsepower, advanced steering technology, and sophisticated electrical charging capability.
At the heart of the XF450 is a 5.6-liter V8 four-stroke engine featuring direct fuel injection, double overhead camshafts, 32 valves, and a 12.3:1 compression ratio. Producing 450 horsepower at 6,000 RPM, this outboard is engineered to deliver high-output performance for boat owners who need substantial power offshore.
One of the defining features of the XTO Offshore series is its integrated electric steering system. The electric steering motor receives signals from the compatible electric helm and directs the integrated steering control unit, creating a streamlined steering arrangement for suitable modern marine installations.
The XF450 also features Yamaha’s award-winning Phase Angle Control Charging System, developed to meet the significant electrical demands of larger boats. Yamaha specifies up to 102 amps gross alternator output and up to 96 amps net charging power at idle. This charging capability is particularly useful for compatible vessels equipped with substantial onboard electronics and electrical accessories.
The Yamaha XTO Offshore 450 is available in 25-inch, 30-inch, and 35-inch shaft configurations, with Yamaha Gray, Pearl White, and Classic White finishes depending on the selected model code. The published dry weight ranges from approximately 963 pounds to 1,010 pounds, depending on shaft length.
Yamaha recommends 89-octane gasoline for the XF450. The engine also features direct fuel injection, electric starting, power trim and tilt, and a 1.79:1 gear ratio.
For boat owners planning an offshore repower or new vessel installation, the XTO Offshore 450 combines high horsepower with integrated steering and advanced charging technology. Confirm engine rotation, shaft length, control compatibility, propeller selection, and required rigging before ordering.
Product Specifications
Brand: Yamaha
Model Series: XTO Offshore XF450
Horsepower: 450 HP
Engine Type: 4-Stroke
Engine Configuration: V8
Displacement: 5.6L
Valvetrain: DOHC, 32 Valves
Fuel Induction: Direct Fuel Injection
Maximum Fuel Injection Pressure: Up to 2,900 PSI
Rated Power: 450 HP at 6,000 RPM
Full-Throttle RPM Range: 5,000–6,000 RPM
Bore x Stroke: 96 x 96 mm
Compression Ratio: 12.3:1
Shaft Length: 25″, 30″, or 35″
Dry Weight: Approximately 963 lbs, 988 lbs, or 1,010 lbs, depending on configuration
Alternator Output: 102 Amps gross maximum
Net Charging Output: Up to 96 Amps at idle
Charging Technology: Phase Angle Control Charging System
Recommended Fuel Octane: 89
Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter recommended
Starting System: Electric Start
Steering: Integrated Electric Actuation
Trim System: Power Trim & Tilt
Gear Ratio: 1.79:1
Gear Shift: Forward, Neutral, Reverse
Ignition: TCI Microcomputer
Lubrication: Wet Sump
Oil Specification: Yamalube 4M; consult the owner’s manual
Ethanol Blend Limit: 10% maximum
Color Options: Yamaha Gray, Pearl White, Classic White
Controls: Digital Electronic Controls (DEC)
Helm Compatibility: Yamaha Helm Master EX compatible
Condition: New
Key Features
Yamaha XTO Offshore XF450 450HP outboard motor, 5.6-liter V8 four-stroke engine, direct fuel injection, 12.3:1 compression ratio, 32-valve DOHC design, integrated electric steering, Phase Angle Control Charging System, up to 96 amps net charging at idle, 25-inch shaft option, 30-inch shaft option, 35-inch shaft option, 89-octane fuel recommendation, electric starting, power trim and tilt, Yamaha Helm Master EX compatibility, Yamaha Gray finish, Pearl White finish, Classic White finish, designed for compatible large offshore and high-performance boats.
Why Choose the Yamaha XTO Offshore 450?
The Yamaha XTO Offshore XF450 450HP Outboard is designed for boat owners who demand substantial horsepower and advanced technology for offshore operation. Its 5.6-liter V8 engine provides 450 horsepower, while the 12.3:1 compression ratio and direct fuel injection form part of Yamaha’s high-performance engine design.
The integrated electric steering system helps simplify steering integration with compatible helm equipment. For vessels with significant electrical requirements, the Phase Angle Control Charging System provides substantial charging output, including up to 96 amps of net charging power at idle according to Yamaha.
The multiple shaft lengths allow customers to select a configuration suitable for their vessel’s transom, while three color options give buyers flexibility when matching the engine to their boat.
The XTO Offshore 450 also supports Yamaha Helm Master EX and a range of compatible controls, gauges, and propellers. The final equipment configuration should be selected to suit the vessel and operating requirements.
5.6-Liter V8 Direct-Injection Engine
The Yamaha XF450 uses a 5.6-liter V8 four-stroke engine with double overhead camshafts and 32 valves. Its direct fuel injection system delivers fuel directly into the combustion chamber at pressures up to 2,900 PSI, according to Yamaha’s specifications.
The engine is rated at 450 horsepower at 6,000 RPM, with a full-throttle operating range of 5,000–6,000 RPM. Its 12.3:1 compression ratio is designed to support the engine’s performance and efficiency characteristics.
Follow the applicable Yamaha owner’s manual for fuel requirements, engine oil specifications, maintenance schedules, and operating procedures.

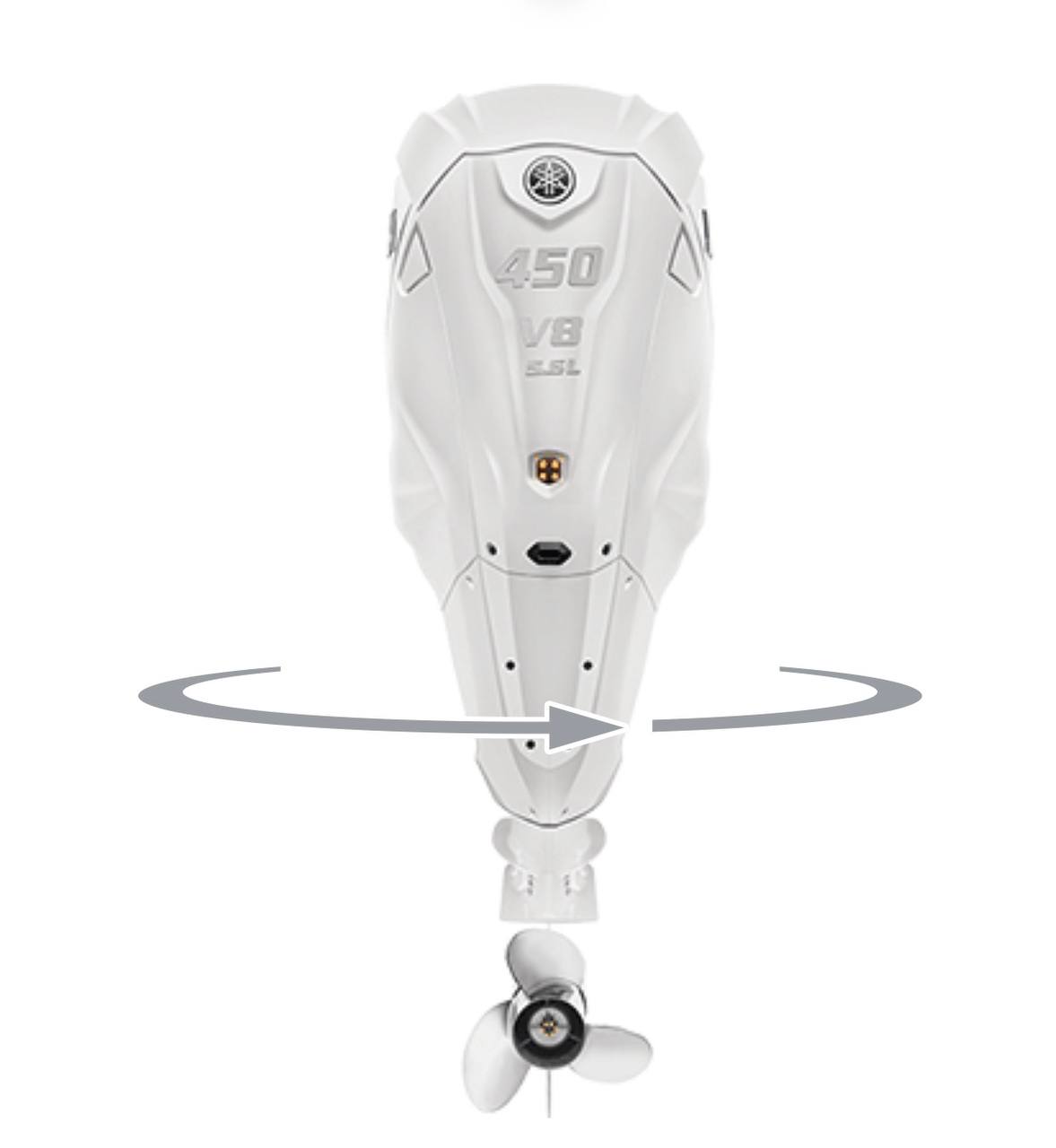

Integrated Electric Steering
The Yamaha XTO Offshore XF450 features an integrated electric steering system. The electric steering motor receives commands from the compatible electric helm and communicates with the integrated steering control unit.
This arrangement supports precise steering control and a streamlined installation on compatible modern offshore vessels. Confirm helm compatibility, steering configuration, wiring, and installation requirements before purchase.
Phase Angle Control Charging System
The XTO Offshore 450 incorporates Yamaha’s Phase Angle Control Charging System, designed to meet the electrical demands of larger offshore boats.
Yamaha specifies up to 102 amps of gross alternator output and up to 96 amps of net charging power at idle. This system can be beneficial on compatible vessels operating navigation equipment, fish finders, communications systems, lighting, and other marine electronics.
Actual output depends on operating conditions and electrical loads. Consult Yamaha’s documentation and a qualified marine technician when sizing the boat’s electrical system.
25-Inch, 30-Inch, and 35-Inch Shaft Options
The Yamaha XF450 is available in three shaft configurations.
25-inch shaft: XF450XSA, XF450XSA2, XF450XSA4
30-inch shaft: XF450USA, XF450USA2, XF450USA4
35-inch shaft: XF450ESA, XF450ESA2, XF450ESA4
The model code identifies the shaft length and finish. Choosing the correct shaft is essential for proper engine mounting, operation, and compatibility with the transom.
Verify your vessel’s transom height, maximum engine weight, mounting dimensions, and manufacturer’s recommendations before ordering.
Recommended 89-Octane Fuel
Yamaha recommends 89-octane gasoline for the XTO Offshore 450. This allows the engine to deliver its intended performance using the specified fuel grade.
Yamaha also recommends an external 10-micron fuel/water-separating filter. Follow the owner’s manual for fuel selection, approved fuel blends, oil, maintenance, storage, and operation.
The stated ethanol blend limit is 10% maximum. Confirm applicable fuel requirements for your location and vessel.
Power Trim & Tilt
The Yamaha XF450 includes power trim and tilt, allowing the operator to adjust the outboard’s position for changing operating conditions, launching, and storage.
Correct trim adjustment depends on the vessel, loading, sea conditions, and operating speed. Verify compatibility between the engine, controls, steering system, and boat installation.
Compatible Controls, Gauges, and Helm Master EX
The XTO Offshore 450 is compatible with Yamaha’s Helm Master EX system, digital controls, and CL5 touchscreen or compatible digital and analog gauges.
The final setup may include electronic controls, steering equipment, gauges, propellers, wiring, and other rigging components. These items are configuration-dependent and should not be assumed to be included unless stated in the purchase package.
For installations involving multiple outboards, verify standard-rotation and counter-rotation requirements and select the correct model code.
Available Colors
The Yamaha XTO Offshore XF450 is available in three finishes for the listed configurations.
Yamaha Gray: Available in 25-inch, 30-inch, and 35-inch shaft models.
Pearl White: Available in 25-inch, 30-inch, and 35-inch shaft models.
Classic White: Available in 25-inch, 30-inch, and 35-inch shaft models.
Color options use different model-code suffixes. Confirm the specific color and shaft selection on the order before purchase.
Warranty Information
Yamaha’s published XF450 specifications list a 5-year limited warranty for pleasure use, a 3-year limited warranty for government use, and a 1-year limited warranty for commercial use.
Warranty eligibility, exclusions, start date, registration requirements, and applicable country or dealer terms can vary. Confirm the exact terms with the selling Yamaha dealer before purchase.
Ideal Applications
The Yamaha XTO Offshore 450 may be suitable for compatible large offshore fishing boats, high-performance center consoles, dual consoles, and other vessels engineered for 450HP outboard propulsion.
This is a high-horsepower, heavyweight-class outboard. The boat’s maximum horsepower rating, transom strength, engine mounting centers, weight capacity, steering system, and electrical requirements must all be verified before installation.
For twin or multiple-engine installations, make sure the correct rotation models and compatible rigging are specified.
Shipping & Availability
Contact Norman Outboards to confirm current availability, color, shaft length, engine rotation, controls, steering equipment, propellers, rigging requirements, shipping rates, and delivery estimates.
Worldwide shipping can be arranged where available. Freight, taxes, dealer preparation, rigging, accessories, and installation may incur additional charges.
The Yamaha XTO Offshore XF450 450HP 5.6L V8 Outboard combines high-output direct-injection performance, integrated electric steering, advanced Phase Angle Control Charging, and multiple shaft and color configurations for compatible offshore vessels.
