Power your vessel with the Yamaha XTO Offshore XF425 425HP Outboard Motor, engineered for high-output offshore performance, precision steering, and dependable operation in demanding marine environments. Developed in collaboration with boat designers, the XTO Offshore 425 combines substantial horsepower with advanced fuel injection, electric steering, and innovative charging technology for compatible large offshore vessels.
The Yamaha XF425 features a 5.6-liter V8 four-stroke engine with double overhead camshafts, 32 valves, direct fuel injection, and a 12.2:1 compression ratio. Producing 425 horsepower at 5,500 RPM, it is designed for boat owners who need substantial power and control for offshore fishing, cruising, and other high-performance boating applications.
A defining feature of the XTO Offshore series is its integrated electric steering system. The electric steering motor receives signals from a compatible electric helm and directs the integrated steering control unit, helping deliver responsive steering control and a streamlined installation on suitable vessels.
The XF425 also incorporates Yamaha’s award-winning Phase Angle Control Charging System, designed to meet the significant electrical demands of larger boats. Yamaha lists up to 100 amps of gross alternator output at wide-open throttle, while the XTO charging system can deliver up to 96 amps of net charging power at idle. This capacity can support the starting battery and compatible onboard electronics, subject to operating conditions and electrical load.
The Yamaha XF425 is available with 25-inch, 30-inch, and 35-inch shaft configurations, allowing buyers to match the engine to compatible transoms. Published dry weights range from approximately 952 to 999 pounds, depending on shaft length.
Available finishes include Yamaha Gray and Pearl White. Each color and shaft combination has its own model code, helping buyers identify the correct configuration for their vessel. The 425HP model is different from the 450HP XTO Offshore and should not be confused with the separate XF450 series.
The engine is designed to run on 89-octane gasoline and includes electric starting and power trim and tilt. Yamaha also specifies iridium spark plugs and quad thermostats as part of the engine’s engineering package.
For boat owners planning an offshore repower or new installation, the Yamaha XTO Offshore XF425 provides advanced steering and charging technology alongside high-horsepower V8 performance. Verify the exact model, shaft length, engine rotation, digital controls, steering equipment, propeller selection, and required rigging before ordering.
Product Specifications
Brand: Yamaha
Model Series: XTO Offshore XF425
Horsepower: 425 HP
Engine Type: 4-Stroke
Engine Configuration: V8
Displacement: 5.6L
Valvetrain: DOHC, 32 Valves
Fuel Induction: Direct Fuel Injection
Maximum Fuel Injection Pressure: Up to 2,900 PSI
Rated Power: 425 HP at 5,500 RPM
Full-Throttle RPM Range: 5,000–6,000 RPM
Bore x Stroke: 96 x 96 mm
Compression Ratio: 12.2:1
Shaft Length: 25″, 30″, or 35″
Dry Weight: Approximately 952 lbs, 977 lbs, or 999 lbs, depending on configuration
Alternator Output: Up to 100 Amps gross at wide-open throttle
Charging Technology: Phase Angle Control Charging System
Net Charging Output: Up to 96 Amps at idle for the XTO charging system
Recommended Fuel Octane: 89
Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter recommended
Starting System: Electric Start
Steering: Integrated Electric Actuation
Trim System: Power Trim & Tilt
Gear Ratio: 1.79:1
Gear Shift: Forward, Neutral, Reverse
Exhaust: Through Propeller, except in reverse below 2,500 RPM
Ignition: TCI Microcomputer
Spark Plugs: ILMAR7E-9, Iridium
Cooling: Thermostatic Control with Quad Thermostats
Lubrication: Wet Sump
Recommended Engine Oil: Yamalube 4M; consult the owner’s manual
Ethanol Blend Limit: 10% maximum
Controls: Digital Electronic Controls (DEC)
Helm Compatibility: Yamaha Helm Master EX compatible
Color Options: Yamaha Gray, Pearl White
Condition: New
Key Features
Yamaha XTO Offshore XF425 425HP outboard motor, 5.6-liter V8 four-stroke engine, 12.2:1 compression ratio, direct fuel injection, 32-valve DOHC design, integrated electric steering, Phase Angle Control Charging System, up to 100 amps gross alternator output, up to 96 amps net charging power at idle for the XTO charging system, 25-inch shaft option, 30-inch shaft option, 35-inch shaft option, 89-octane fuel recommendation, iridium spark plugs, quad thermostats, electric starting, power trim and tilt, Yamaha Helm Master EX compatibility, Yamaha Gray finish, Pearl White finish.
Why Choose the Yamaha XTO Offshore XF425 425HP?
The Yamaha XTO Offshore XF425 is engineered for boat owners who require serious horsepower, advanced steering control, and substantial charging capability for demanding offshore use. Its 5.6-liter V8 engine produces 425 horsepower, while direct fuel injection and a 12.2:1 compression ratio form part of Yamaha’s performance-focused design.
The integrated electric steering system is designed to provide responsive steering and work with compatible electronic helm equipment. For boats with high electrical demand, the Phase Angle Control Charging System offers significant charging capacity, including up to 96 amps of net charging power at idle for the XTO system.
The three shaft-length options help buyers match the engine to the boat’s transom requirements, while Yamaha Gray and Pearl White provide two factory finish choices. The XF425 is also compatible with Yamaha digital controls, compatible gauges, and Helm Master EX equipment.
Together, these features make the XTO Offshore 425 a compelling option for suitable large center consoles, offshore fishing boats, and other vessels engineered for 425HP outboard propulsion.
5.6-Liter V8 Direct-Injection Engine
The Yamaha XF425 features a 5.6-liter V8 four-stroke engine with double overhead camshafts and 32 valves. Its direct fuel injection system delivers fuel directly into the combustion chamber at pressures up to 2,900 PSI, according to Yamaha’s specifications.
The engine is rated at 425 horsepower at 5,500 RPM, with a full-throttle operating range of 5,000–6,000 RPM. The 12.2:1 compression ratio is part of the engine’s performance and efficiency design.
Yamaha specifies iridium spark plugs and quad thermostats as engineering features intended to support reliable operation under demanding marine conditions.
Follow the applicable Yamaha owner’s manual for recommended fuel, engine oil, maintenance, storage, and operating procedures.

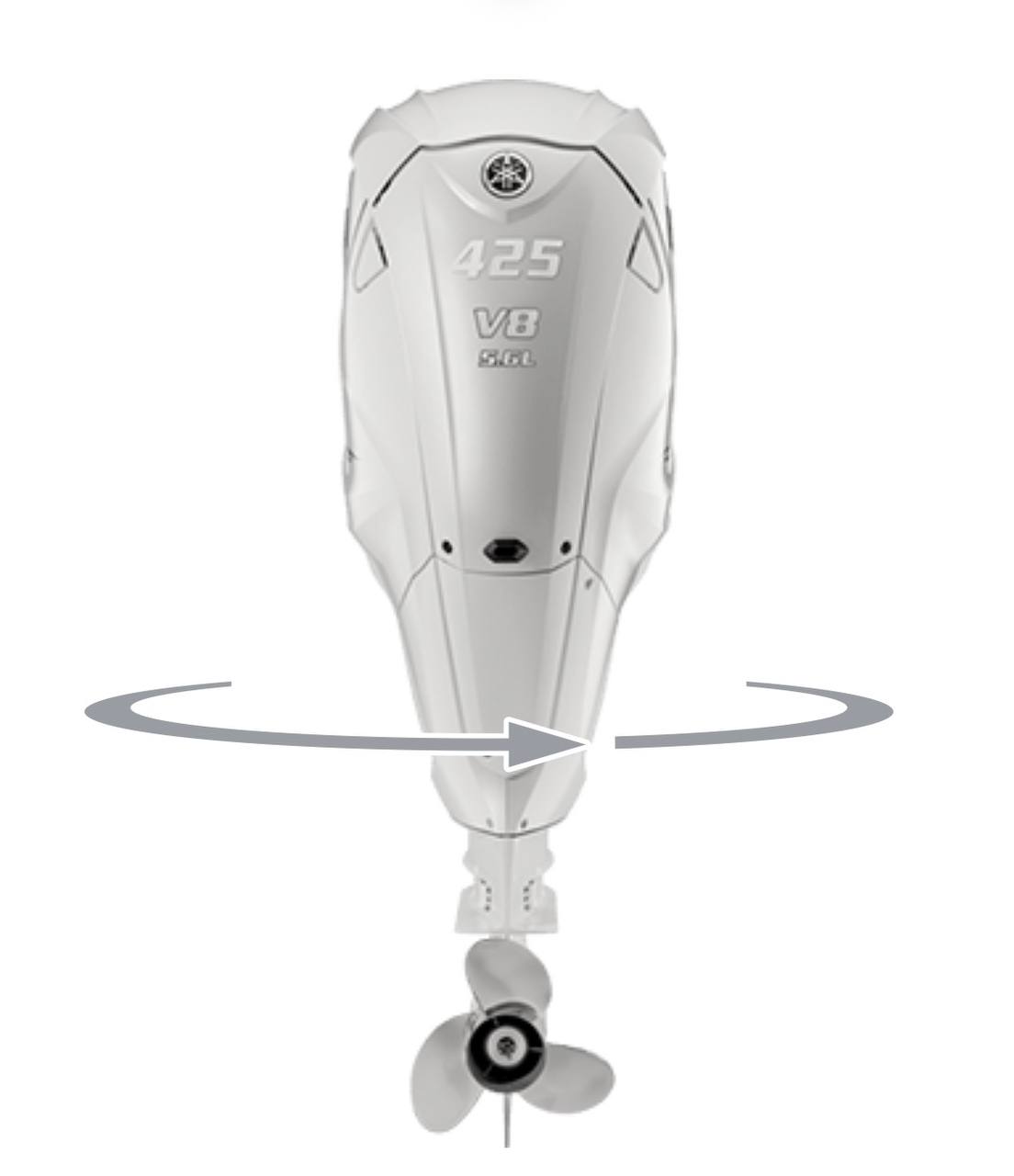

Integrated Electric Steering
The Yamaha XTO Offshore XF425 features integrated electric steering. The electric steering motor receives commands from a compatible electric helm and communicates with the integrated steering control unit.
This system is designed to provide responsive steering and simplify integration with compatible modern helm arrangements. Confirm helm compatibility, wiring, controls, steering configuration, and installation requirements before purchase.
Phase Angle Control Charging System
The XTO Offshore 425 incorporates Yamaha’s Phase Angle Control Charging System, designed to meet the substantial electrical demands of larger offshore boats.
Yamaha lists up to 100 amps of gross alternator output at wide-open throttle. The XTO charging system can also deliver up to 96 amps of net charging power at idle from a single outboard.
This charging capability can support compatible navigation displays, fish finders, communications systems, lighting, and other onboard electronics. Actual output depends on engine operation, electrical load, and the vessel’s electrical installation.
25-Inch, 30-Inch, and 35-Inch Shaft Options
The Yamaha XF425 is offered in three shaft lengths to suit compatible vessel configurations.
25-inch shaft: XF425XSB and XF425XSB2
30-inch shaft: XF425USB and XF425USB2
35-inch shaft: XF425ESB and XF425ESB2
The model code identifies the shaft length and finish. Selecting the correct shaft is essential for proper mounting and engine operation.
Before ordering, verify your boat’s transom height, maximum engine weight, mounting dimensions, and manufacturer recommendations.
Recommended 89-Octane Fuel
Yamaha recommends 89-octane gasoline for the XTO Offshore XF425.
Using the specified fuel grade and following Yamaha’s service schedule are important for dependable operation. Yamaha also recommends an external 10-micron fuel/water-separating filter. The owner’s manual should be consulted for complete fueling, oil, maintenance, and storage instructions.
Yamaha lists a maximum ethanol blend limit of 10%. Confirm local fuel quality and requirements before operating the engine.
Iridium Spark Plugs and Quad Thermostats
The XF425 includes engineering features designed for demanding offshore operation, including iridium spark plugs and quad thermostats.
These components form part of Yamaha’s overall engine design. Routine maintenance should follow the applicable service schedule, including the specified spark plug inspection and replacement intervals.
Power Trim & Tilt
The Yamaha XF425 includes power trim and tilt, allowing the operator to adjust engine position for different running conditions, launching, and storage.
The correct trim setup depends on boat design, loading, sea conditions, and operating speed. Confirm compatibility between the selected engine, controls, steering system, and vessel installation.
Compatible Controls, Gauges, and Helm Master EX
The XTO Offshore XF425 is compatible with Yamaha digital electronic controls, Helm Master EX equipment, and compatible CL5 touchscreen or digital and analog gauges.
The complete installation may require controls, steering equipment, wiring harnesses, gauges, propellers, and other rigging components. These items are configuration-dependent and should not be assumed to be included unless explicitly stated in the purchase package.
For twin- or multiple-engine installations, verify whether standard-rotation or counter-rotation models are required before selecting the appropriate model codes.
Available Colors
The Yamaha XTO Offshore XF425 is available in two factory finishes for the listed configurations.
Yamaha Gray: Available in 25-inch, 30-inch, and 35-inch shaft models.
Pearl White: Available in 25-inch, 30-inch, and 35-inch shaft models.
Each finish uses a different model-code suffix. Verify the desired color and shaft combination before placing an order.
Warranty Information
Yamaha lists a 5-year limited warranty for pleasure use for the XTO Offshore XF425. Yamaha’s published specifications also list a 3-year limited warranty for government use and a 1-year limited warranty for commercial use.
Warranty eligibility, exclusions, registration requirements, start date, and geographic terms can vary. Confirm the applicable warranty terms with the selling Yamaha dealer before purchase.
Ideal Applications
The Yamaha XTO Offshore XF425 may be suitable for compatible large offshore fishing boats, center consoles, dual consoles, and other high-performance vessels engineered for 425HP outboard propulsion.
The XF425 is a high-horsepower engine weighing approximately 952–999 pounds, depending on shaft configuration. Verify the boat manufacturer’s maximum horsepower rating, transom strength, engine weight capacity, mounting arrangement, steering system, and electrical requirements before installation.
For multi-engine setups, confirm standard-rotation and counter-rotation requirements and select the correct model codes.
Shipping & Availability
Contact Norman Outboards to confirm current stock, model code, shaft length, color, engine rotation, digital controls, steering equipment, compatible propellers, rigging requirements, shipping rates, and delivery estimates.
Worldwide shipping can be arranged where available. Freight, taxes, dealer preparation, rigging, steering equipment, accessories, and installation may incur additional charges.
The Yamaha XTO Offshore XF425 425HP 5.6L V8 Outboard combines direct-injection performance, integrated electric steering, advanced Phase Angle Control Charging, and multiple shaft configurations for compatible offshore vessels.
